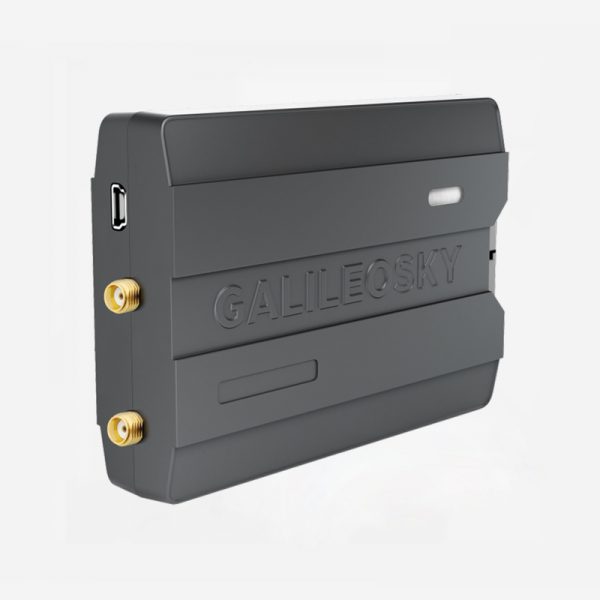

Galileosky 7x C

Description

Thanks to Easy Logic technology and CAN Scanner Galileosky 7x C carries out all the tasks for vehicle monitoring. Now you can find data in CAN bus of any vehicle. Control fleets, reduce fuel and maintenance costs and prevent mistakes before they happen.

Moreover, Galileosky 7x C main advantage is the ability to connect a large number of additional devices and sensors. It allows to use the tracker in the most outstanding projects.

Maximum inputs for integration
Galileosky 7x C is integrated with many devices to create the representative monitoring picture. The tracker provides 10 inputs and 4 outputs. It allows to transfer current data parameters of special equipment, the number of passengers and so on – there are enough inputs for everything.

You can solve the most non-standard tasks from various spheres. For example, you can set fuel delivery access only after identification. Create different messages to send to the dispatcher by a combination of button.

Every action is under control
Galileosky 7x C has a built-in accelerometer and supports Eco Driving function with sending instant alerts. Monitor speed limits abidance on different road sectors, record sharp turns, active backing-ups and acceleration, warn the driver about violations.

RS 485 and 1-Wire protocols support opens up vast opportunities for monitoring drivers and vehicles. Galileosky 7x C allows to monitor staff work and rest schedules, connect up to 16 fuel level sensors and much more.

Due to the capabilities of the CAN Scanner and J1939, FMS and J1979 protocols, the tracker allows to receive accurate data of fuel consumption and draining, monitor condition and deterioration of equipment. Preventive failure warnings help to reduce fleet maintenance costs.

Opportunities for top ten
Like all Galileosky 7x line devices, the new model combines many useful features. The presence of a USB port allows to set and charge the device without external power source. The tracker supports 2 Nano SIM cards with the ability to install a SIM chip. It has a built-in 600mAh battery for autonomous operation of the unit up to 8 hours.

Delivery kit
Galileosky 7x C Standard delivery kit includes:

Set of wires;
GLONASS / GPS antenna and GSM antenna;
SIM holder;
Documents for the unit;
Fuse with the holder.
To begin, you will need a USB-cable, one or two SIM-cards, which are not included in the package.

Connection of additional devices
1-Wire

RFID readers

iButton keys DS1990, DS1982

Thermometers DS18S20 (DS1820, DS18B20) and\or temperature and humidity sensors DS1923

CAN

CAN Scanner tool

CAN-bus protocol support – J1939 (FMS, Scanner, User_29bit, User_11bit)

CAN-bus protocol support – J1979 (Scanner, User_29bit, User_11bit)

RS 485

Eurosens Delta

UHF RFID Reader

Tachograph SHTRIH-ТахоRUS

Tachograph Mercury ТА-001

SENS

RFID reader Matrix 5

Digital fuel level sensors

Galileosky photo camera

Dosimeter DBG-S11D

DAI

Analog-frequency fuel level sensors

Pulse flowmeters

Passenger traffic flow sensors

Analog emergency button
