Galileosky 7.0 Wi-Fi

Description

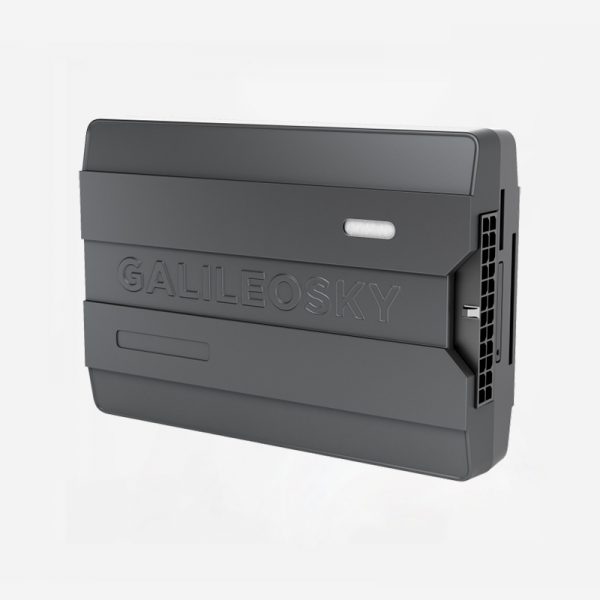

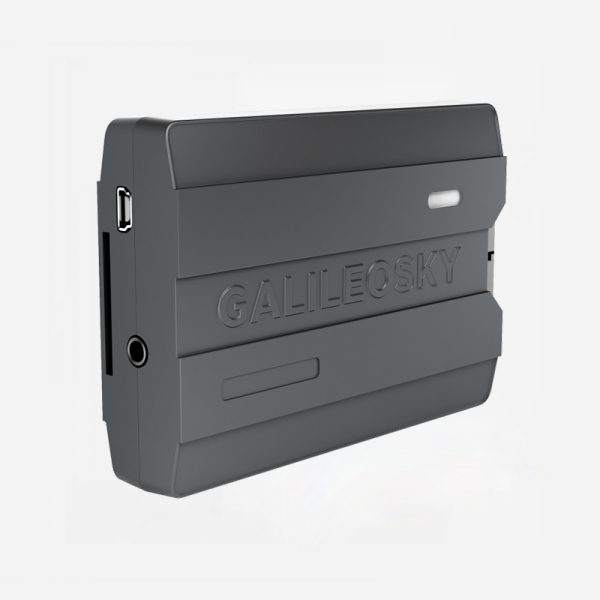

Galileosky 7.0 Wi-Fi is a lightweight and compact GPS / GLONASS vehicle tracking device in a plastic housing with inbuilt antennas. Its main distinctive feature is the support of data transmission via Wi-Fi channel. Additional advantage of this unit is the availability of additional fasteners for easy mounting.
The tracker is able to transmit route data and the vehicle condition status even in areas with either no or poor GSM coverage. The support of data transmission over a Wi-Fi network is particularly relevant for the remote from urban infrastructure territories. For example, this would be a perfect solution for the agricultural and extractive industries.
When there is no need for online monitoring, setting up a Wi-Fi connection will help to reduce the communication expenses.

Broad functionality support in monitoring software
With Easy Logic self-programming technology, you can implement your own terminal operation algorithms in both the transport monitoring area and remote management of stationary objects.
Thus, you can set up sending SMS notifications when starting the engine, or automate the operation modes of the heating equipment in the building.
Galileosky 7.0 Wi-Fi has extensive capabilities for connecting additional sensors and devices by supporting RS232, RS485 and 1-Wire protocols. So, with the help of RFID tags and iButton keys it is possible to implement the driver identification, automatically keep track of work and rest of the personnel, control fuel consumption and avoid fuel discharge. The installation of weight sensors will prevent overloading of equipment or theft of goods, as well as ensure receiving customized reports indicating the location, time and weight of the loading.
By connecting to the CAN bus you can get information about the engine speed, total mileage, coolant temperature and other parameters of the vehicle. Connection of additional sensors will allow obtaining data on doors opening, tire pressure. What ’s more, the integration with refrigerator equipment will ensure control of temperature and humidity of the transported goods.

Easy and handy mounting
Thanks to the internal antennas, the device is easy to install in the car. It is also possible to make a hidden installation. Thanks to the design of the unit, the risk of damage or twisting of antennas is significantly reduced.
When placing an order the extended equipment set with the additional fasteners is available.

Equipment set
Standard equipment set includes:

Connector with contacts;
Set of wires;
SIM holder;
Fuse holder.
When working with the device you will also need a USB cable, a SIM card, a power supply unit, which are not included in the package.

Connection of additional devices
1-Wire

RFID readers

iButton keys DS1990, DS1982

Thermometers DS18S20 (DS1820, DS18B20) and\or temperature and humidity sensors DS1923

CAN

CAN-bus protocol support – J1939 (FMS, Scanner, User_29bit, User_11bit)

CAN-bus protocol support – J1979 (Scanner, User_29bit, User_11bit)

RS232

Digital fuel level sensors

CAN-LOG

Weight indicators AWT640, CI5010A, WinScale Dinamica Generale, Тenzo-М ТV-003/05М, GRAINScale, MIDL MI VDA12Ya

CUB5B indicator

Trimble course indicator

GARMIN navigator

Refrigerating equipment ThermoKing, Euroscan and Carrier DataCold

Pressure Pro TPMS

REP-500 electric meter

Galileosky photo camera

Atol Drive 5 tachograph

Pressure Pro Pulse TPMS

TPMS

Tachograph Continental VDO (DTCO 3283, DTCO 1381)

RS485

Eurosens Delta

UHF RFID Reader

Tachograph SHTRIH-ТахоRUS

Tachograph Mercury ТА-001

SENS

RFID reader Matrix 5

Digital fuel level sensors

Galileosky photo camera

Dosimeter DBG-S11D

DAI

Analog-frequency fuel level sensors

Pulse flowmeters

Passenger traffic flow sensors

Analog emergency button
