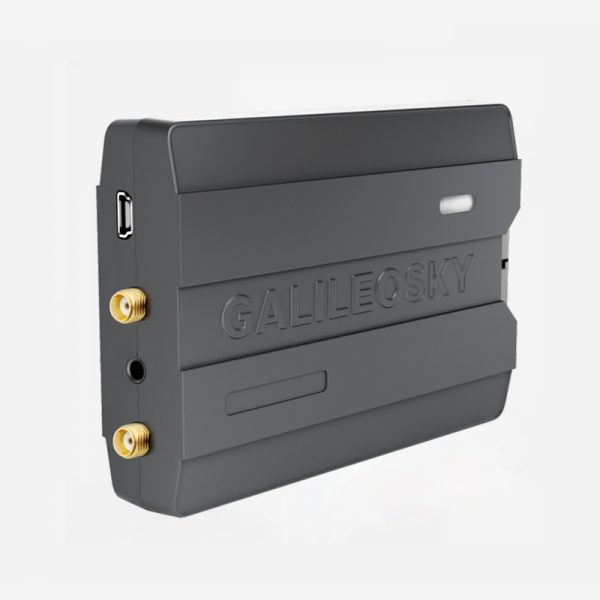

Galileosky 7x Plus

Description

Programmable tracking device Galileosky 7x Plus combines well-recognized features of Galileosky v 5.0 and high-end technologies of next-generation devices. Plus Easy Logic features. Plus a powerful tool to data search in CAN bus of any car. Plus Bluetooth interface support. Plus many new useful features.

Next-generation flagship
We expand advanced functionality of new Galileosky 7x Plus: the device becomes more powerful, meanwhile retained the useful features of Galileosky v 5.0. It still has 8 inputs and 4 outputs for additional sensors and devices, 2 SIM-cards support to set the most favorable data transfer in roaming, Eco Driving function with instant notifications to the driver online, the ability to install a 512 GB micro SD card and a 600mAh battery.

Galileosky 7x Plus supports Bluetooth 5.0 interface, which allows to use Exigner Driver App without mobile data transmission.

Changes also affect work with additional sensors and devices. Galileosky 7x Plus records even the weakest signals from sensors without any external devices. Due to the output voltage increased to 200 mA, the device is able to activate relays, sensors and devices with a higher output signal.

For those who value technology
Capabilities of the latest Galileosky technologies make it possible to use Galileosky 7x Plus in projects of any level and purpose. For example, while using Easy Logic technology, you can create flexible fleet management settings, change operation modes in different geofences, and record actions at any stage of work.

RS 485, RS 232 and 1-Wire protocols provide opportunities to monitor the parameters of external sensors and devices. It empowers checking fuel level, tire pressure, count the number of passengers, set object access identification, control temperature, humidity, connect cameras, weight indicators and everything necessary for a specific project.

Thanks to CAN output and CAN Scanner tool support, it is possible to identify the position of the steering wheel and pedals. Therefore, Galileosky 7x Plus is perfect for full range diagnostics.

Convenient installation
Two through holes are specially designed on the device’s body for easy installation. The dimensions of the tracker are only 102 x 68 x 24 mm even with external antennas. At the same time, the tracker is so compact that can fit in the palm of your hand.
Mini USB port provides charging of the device, necessary for its configuration and diagnostics. This is convenient when creating a monitoring system for a large fleet.
Moreover, Galileosky v 5.0 is replaceable with the configured Galileosky 7x Plus, as the contact arrangement of these devices matches-up perfectly. It is enough to fix Galileosky 7x Plus on monitoring objects, connect a 24-pin connector to the tracker and configure it, adding new functionality.

Package
The Galileosky 7x Plus Standard kit includes:

Set of wires;
GLONASS / GPS antenna and GSM antenna;
SIM holder;
Documents for the unit;
Fuse with the holder.
To begin, you will need a USB-cable, one or two SIM-cards, which are not included in the package (or delivery kit).

Connection of additional devices
1-Wire

RFID readers

iButton keys DS1990, DS1982

Thermometers DS18S20 (DS1820, DS18B20) and\or temperature and humidity sensors DS1923

CAN

CAN Scanner tool

CAN-bus protocol support – J1939 (FMS, Scanner, User_29bit, User_11bit)

CAN-bus protocol support – J1979 (Scanner, User_29bit, User_11bit)

RS 232

Digital fuel level sensors

CAN-LOG

Weight indicators AWT640, CI5010A, WinScale Dinamica Generale, Тenzo-М ТV-003/05М, GRAINScale, MIDL MI VDA12Ya

CUB5B indicator

Trimble course indicator

GARMIN navigator

Refrigerating equipment ThermoKing, Euroscan and Carrier DataCold

Pressure Pro TPMS

REP-500 electric meter

Galileosky photo camera

Atol Drive 5 tachograph

Pressure Pro Pulse TPMS

TPMS

Tachograph Continental VDO (DTCO 3283, DTCO 1381)

RS 485

Eurosens Delta

UHF RFID Reader

Tachograph SHTRIH-ТахоRUS

Tachograph Mercury ТА-001

SENS

RFID reader Matrix 5

Digital fuel level sensors

Galileosky photo camera

Dosimeter DBG-S11D

DAI

Analog-frequency fuel level sensors

Pulse flowmeters

Passenger traffic flow sensors

Analog emergency button
